Super Value! 8-inch Single-sided Pressurized Kart Hub Motor with Stable Performance for Karting

Don't miss out on this high-quality 8-inch single-sided pressurized kart hub motor! Contact us now to place your order and experience the excellent performance it offers!
Shenzhen Jinhaixin Holdings Co., Ltd Shenzhen, China

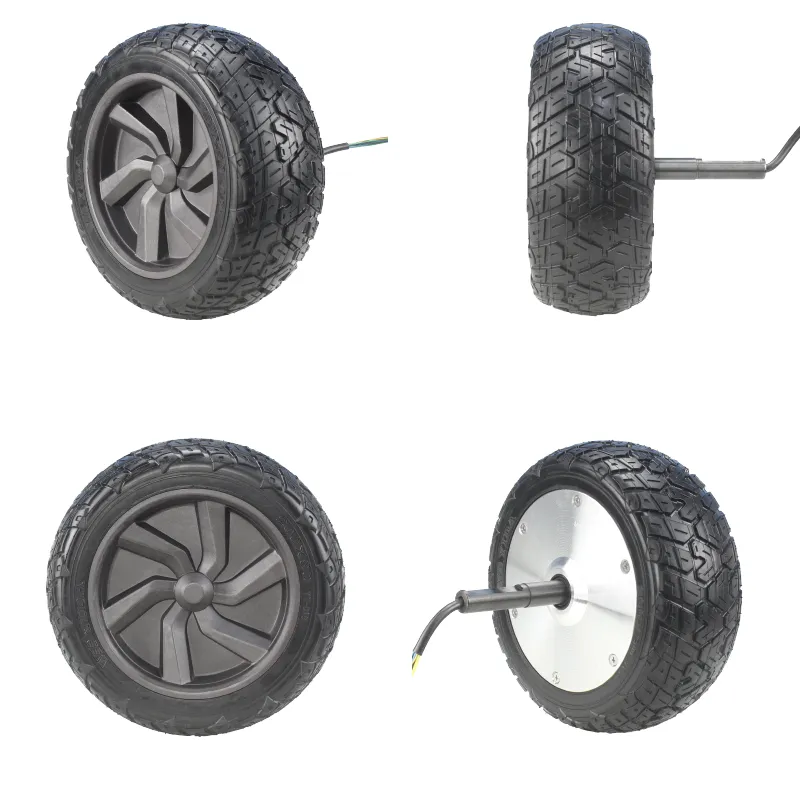

https://shmuker.oss-accelerate.aliyuncs.com/data/oss/687469242fe8040371e8da76/6895ca8c771aae6edad74ae7/20250815152317/8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-4.png
https://shmuker.oss-accelerate.aliyuncs.com/data/oss/687469242fe8040371e8da76/6895ca8c771aae6edad74ae7/20250815152317/8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-2.png
https://shmuker.oss-accelerate.aliyuncs.com/data/oss/687469242fe8040371e8da76/6895ca8c771aae6edad74ae7/20250815152317/8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-3.png
https://shmuker.oss-accelerate.aliyuncs.com/data/oss/687469242fe8040371e8da76/6895ca8c771aae6edad74ae7/20250815152317/8.5-inch-half-diameter-213mm-tire-width-83-unilateral-finale-82-long-shaft-model-5.jpg
Product Parameters
The main parameters
Number Projects Specification Remarks
1 Motor diameter 213mm (slight deviation including tire size) Subject to actual product
2 Rated voltage 36V
3 Rated power 350W
4 Rated rotating speed 500±50rpm
5 Rated current 8±0.5A
6 Theoretical torque 15.9N/M
7 Degree of phases 120°
8 Number of poles 15 pole pairs 30PCS
9 Out of the shaft Single-sided D-shaped pressing shaft (mm)
10 Lead exposed 300mm
11 Size of connectors 3+6 (pin configuration)
12 Brake mode Electromagnetic brake
13 Shaft material 45cr (alloy steel)
14 Waterproof rating IP55
15 Maximum load 120kg
16 Environmental requirements -20℃ to 65℃

Close
Product Details
Product Introduction
The 8-inch single-sided pressurized kart hub motor is proudly presented by Shenzhen Jinhai Core Holding Co., Ltd. This motor is an excellent choice for kart power. It is well - matched with customized kart tires and axles. The 10 - inch tires with a diameter of 255mm and a 65mm wide tread have high wear resistance. The 115mm long single - sided axle has an accurate shaft diameter suitable for adult and youth karts, and no additional hole modification is required for installation. We support bulk customization to meet the procurement needs of teams and venues. With the company's value of 'Diligence, Innovation, and Pursuit of Excellence' and a perfect quality management system, we ensure the stability and reliability of the product. Moreover, we offer comprehensive after - sales support.
Advantages and features
1. High compatibility: It can be well - matched with customized kart tires and axles. 2. Easy installation: The single - sided axle structure eliminates the need for additional hole modification. 3. Wear - resistant tires: The 10 - inch tires with a 65mm wide tread have high wear resistance. 4. Customizable: Supports bulk customization to meet different procurement needs. 5. Quality assurance: Backed by a perfect quality management system and comprehensive after - sales support.
Application Scenario
This product is mainly used in the karting field, suitable for kart racing teams, karting venues, and manufacturers of custom karts. It can meet the needs of both amateur and professional kart enthusiasts.
Ordering Information
Custom Request
Packing and shipping
Contact us for details
Payment method
COMM
COMM
Refunds
Contact us for details
Corporate Information
Shenzhen Jinhaixin Holdings Co., Ltd
Service Guarantee
Service Information
Address
Longgang District, Shenzhen, China
Advisory Message
Pre-sales advice
1. Connect the motor to the controller and power supply according to the wiring diagram on the controller.
2. The tire is installed outside the outer rotor hub.
3. When the power cord passes through metal parts, it should be protected by non-metal products.
4. Special attention: When the motor is powered on by the driver and the motor does not move or freezes, or it heats up abnormally quickly, the power must be turned off and on within three seconds to adjust the electrical angle or drive output to avoid motor failure
After-sales service
Please feel free to contact me if you have any questions.
